Common Types of Chipboard Screw

Chipboard screws, also known as particle board screws, are designed specifically for use with chipboard or particle board. These screws have unique features that allow them to provide strong and secure fastening in these materials. Common types of chipboard screws include:

1.  Flat Head Chipboard Screw : These screws have a flat head with a countersunk design, allowing them to sit flush with the surface of the chipboard when fully tightened. They are commonly used in applications where a smooth, flush finish is desired.

2.  Pan Head Chipboard Screw : Pan head chipboard screws have a rounded, slightly raised head. They are ideal for applications where a higher profile head is required, and they offer a more prominent appearance compared to flat head screws.

3.  Oval Head Chipboard Screw : Oval head chipboard screws have an oval-shaped head that sits slightly above the surface of the chipboard when installed. They provide a visually appealing look and are often used in furniture and cabinetry assembly.

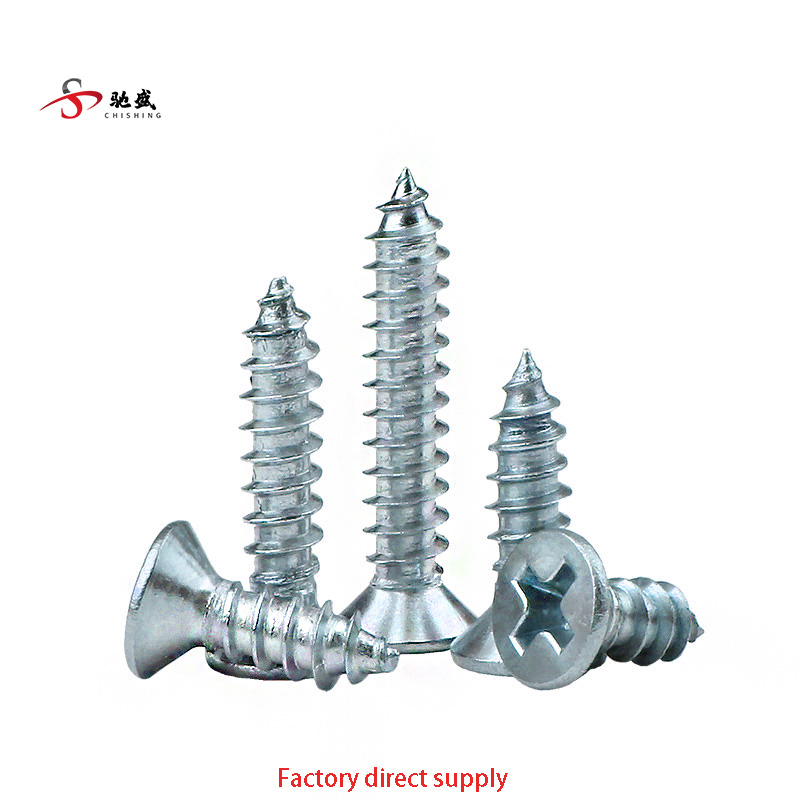

4.  Countersunk Chipboard Screw : Countersunk chipboard screws have a tapered head that allows them to sit flush with the surface of the chipboard when driven in. This design prevents the screw head from protruding, creating a smooth finish.

5.  Raised Head Chipboard Screw : Raised head chipboard screws have a head that is slightly raised above the surface of the chipboard. This type of screw is commonly used when a more visible screw head is preferred, such as in woodworking projects.

6.  Double-Countersunk Chipboard Screw : Double-countersunk chipboard screws have two countersunk angles on the head, allowing for a more secure and flush fit when driven into the chipboard.

7.  Threaded Chipboard Screw : Threaded chipboard screws have a fully threaded shank, providing increased grip and holding power in the chipboard material.

8.  Partial Thread Chipboard Screw : Partial thread chipboard screws have a partially threaded shank, combining the benefits of threaded and smooth shank screws. The partial thread provides grip, while the smooth section reduces the risk of over-tightening and splitting the chipboard.

9.  Self-Drilling Chipboard Screw : Self-drilling chipboard screws have a drill-like point, allowing them to self-drill into the chipboard without the need for pre-drilling. This feature saves time and simplifies the installation process.

10.  Torx Drive Chipboard Screw : Torx drive chipboard screws feature a star-shaped drive recess (Torx or star drive) that provides better torque transfer and reduces the risk of cam-out during installation.

Each type of chipboard screw is designed for specific applications and offers different benefits. When choosing a chipboard screw, consider factors such as the thickness of the chipboard, the desired appearance, and the level of holding power required for the application.
