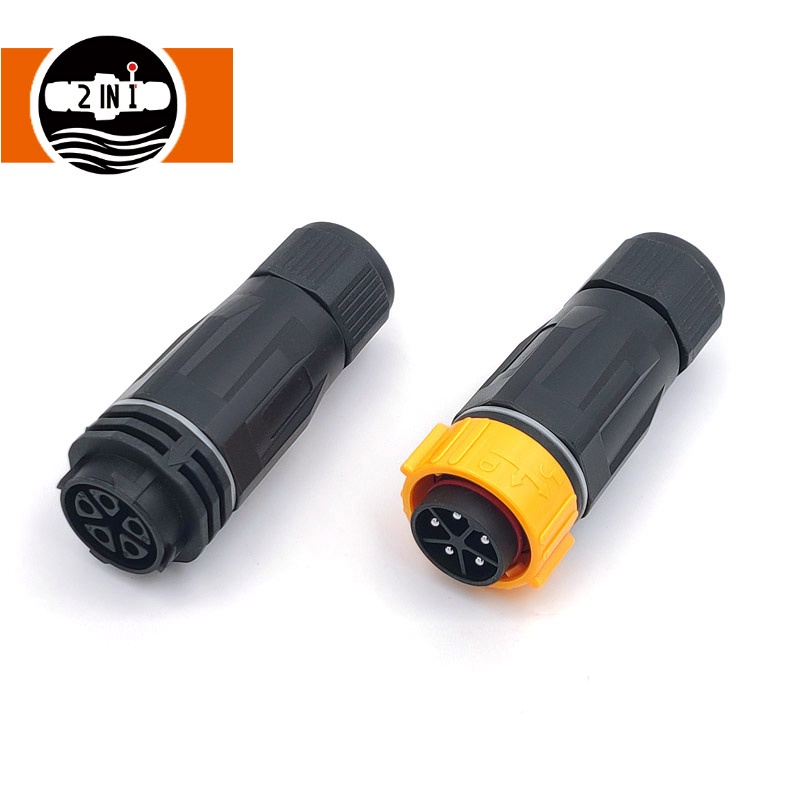

Exploring the Suitable Wire Gauge for the 15A Bulkhead Male Waterproof Connector

When selecting a wire gauge to pair with the 15A Bulkhead Male Waterproof Connector, it's essential to ensure that the wire can safely handle the current and voltage requirements of the application while also fitting securely into the connector. In this blog, we'll discuss the key considerations for choosing the right wire gauge for this type of connector.

First, let's consider the amperage rating of the connector. In this case, we're dealing with a 15A Bulkhead Male Waterproof Connector. This means that the connector is designed to handle up to 15 amperes of current safely. As a general rule, the wire gauge you choose should be able to carry at least the same amperage rating as the connector.

To determine the appropriate wire gauge, you can consult the American Wire Gauge (AWG) chart. This chart provides a standardized way to measure wire diameter and cross-sectional area, which directly correlates to the wire's current-carrying capacity.

For a 15A connector, a commonly recommended wire gauge is 14 AWG (American Wire Gauge). This gauge offers a sufficient cross-sectional area to safely carry 15 amperes of current, with a little room for additional capacity. However, it's always advisable to consult the manufacturer's specifications or an electrical engineer to ensure you're selecting the most appropriate wire gauge for your specific application.

It's also worth mentioning that the wire gauge you choose should be compatible with the connector's wire entry hole size. The connector should have a wire entry hole that's large enough to accommodate the wire gauge you're using, while still providing a secure and reliable connection.

Another important consideration is the wire's material. For marine environments, it's essential to choose a wire material that's corrosion-resistant and can withstand the harsh conditions. Common choices include tinned copper, marine-grade wire, or stainless steel.

In conclusion, when selecting a wire gauge for the 15A Bulkhead Male Waterproof Connector, you should consider the connector's amperage rating, consult the AWG chart to determine the appropriate gauge, ensure compatibility with the connector's wire entry hole, and choose a corrosion-resistant wire material. By making these considerations, you can ensure that you're selecting a wire gauge that's safe, reliable, and suitable for your application.
