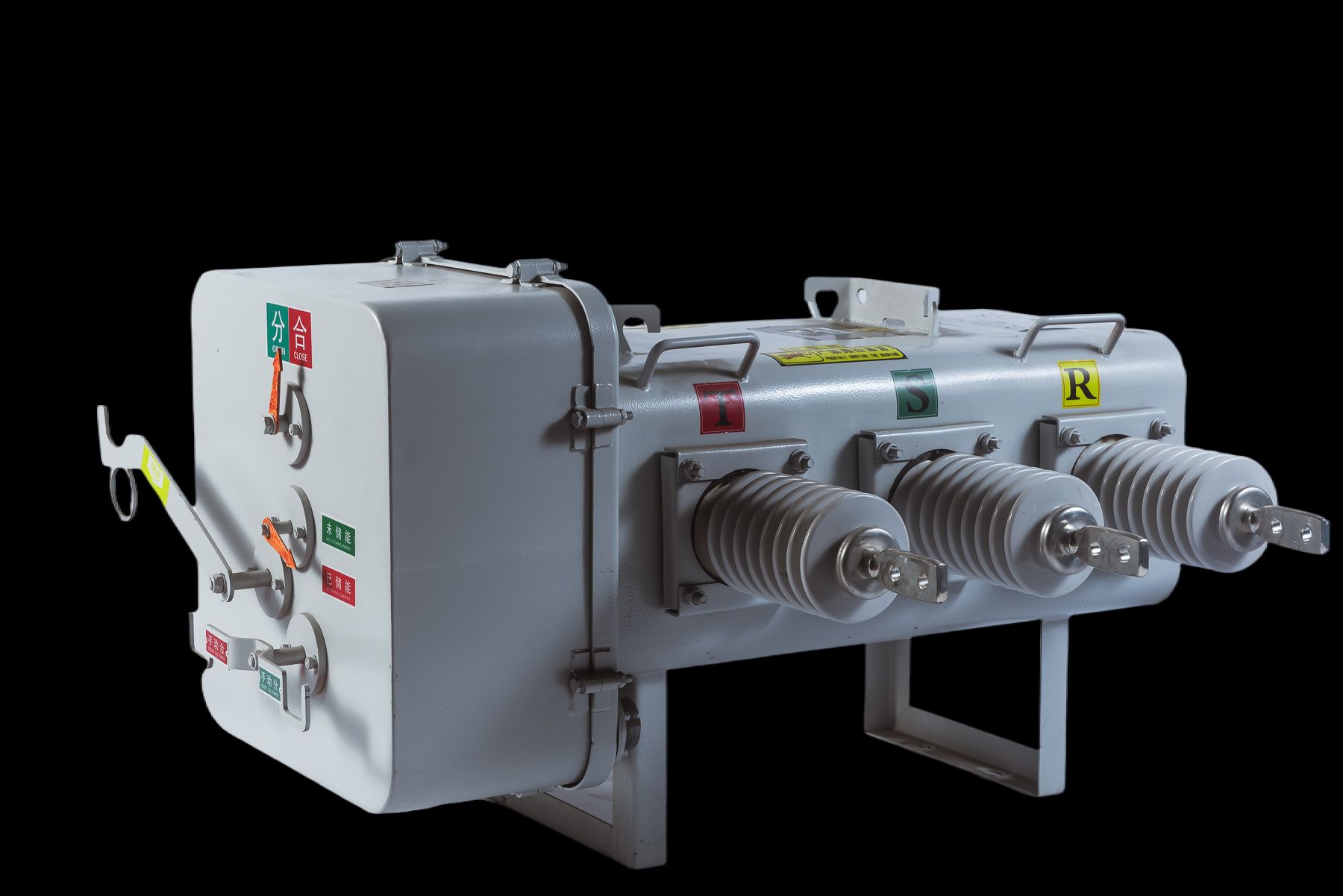

China SF6 Load Break Switch: Key Benefits and Selection Tips

When specifying a load break switch for medium-voltage distribution, SF6 models often get overlooked simply because they do their job quietly—until a failure brings operations to a halt. China now leads global production of these switches, but the gap between a bargain unit and a dependable one can be wide. That’s where Deepwill enters the picture, with design and testing practices that tackle the real failure points: gas leakage, contact wear, and inconsistent arc quenching. In this post, we’ll unpack the key benefits that make a Chinese SF6 load break switch worth your investment and share selection tips that go beyond the datasheet. If you’re tired of choosing between price and performance, keep reading—you might find the middle ground you’ve been missing.

How Chinese Manufacturers Are Redefining SF6 Load Break Switch Durability

For years, SF6 load break switches were plagued by slow gas leaks and mechanical wear that shortened field life. Chinese manufacturers have shifted that narrative by focusing on leak-proof enclosure design. Laser-welded stainless steel tanks replace older bolted or cast housings, cutting potential leak points dramatically. High-performance fluororubber seals are tested through hundreds of thermal cycles from -40°C to 85°C, ensuring gas tightness even in coastal salt-spray or dusty industrial environments.

On the mechanical side, the operating mechanism has been rebuilt rather than copied. Dual-spring energy storage and precision-machined bearings reduce friction and prevent the sluggish operation common in earlier designs. Many Chinese models now pass 10,000 to 20,000 mechanical endurance cycles, far exceeding the IEC minimum. Some manufacturers also embed basic condition sensors that track gas pressure and contact wear, letting utilities shift from reactive repairs to planned maintenance.

Durability claims are backed by in-house accelerated aging rigs that simulate two decades of service with UV exposure, thermal shock, vibration, and salt fog. This data-driven approach lets engineers refine materials and tolerances before products reach the grid. The result is a generation of switches that hold up in harsh distribution networks while keeping total cost of ownership low, quietly overturning old assumptions about quality from Chinese factories.

Spotting Overstated Ratings Before You Commit to a Purchase

A wall of five-star reviews with hardly any middle ground often signals something is off. Real products collect a mix of opinions—someone always finds a flaw, a shipping delay, or a mismatch with expectations. When every comment reads like a marketing blurb, pause and look closer.

Check the dates. A sudden burst of glowing reviews within a few days, especially right after a product launch or a price drop, can indicate coordinated boosting. Also glance at reviewer profiles. If most have only posted once, or their history shows reviews for wildly unrelated items all in the same enthusiastic tone, treat those ratings with suspicion.

Cross-checking ratings across a couple of retailer sites or independent forums often reveals gaps. A 4.9 on one site might sit at 3.2 elsewhere because moderation or incentives differ. Pay attention to reviews that mention tangible details—like how a material feels after washing, or a button that sticks—because those grounded observations are harder to fake than generic praise.

Gas Tightness and Leak Rate Testing That Separates Reliable Units From the Rest

Every production line churns out units that look identical on the outside, but the ones that hold up over years of service share a quiet secret: they were subjected to gas tightness and leak rate testing that goes beyond a simple bubble check. This isn't about catching obvious hisses or visible cracks. It's about measuring the microscopic escape paths that form at weld joints, valve seats, and seal interfaces under real operating pressures. A unit that passes a basic visual inspection can still lose pressure at 0.5% per hour, which might sound negligible until you calculate the cumulative loss over a six-month deployment in a remote installation.

What separates reliable units from the rest often comes down to the test rig's sensitivity and the acceptance criteria. Some manufacturers test only at atmospheric pressure using tracer gas, missing the stress-induced leak paths that open up when the unit is pressurized to its working range. Others rely on a single threshold for all units, ignoring that different seal materials relax differently after thermal cycling. The best testing programs combine multiple conditions: room temperature and elevated temperature, dry gas and humidified gas, static pressure and pulsed pressure. They track leak rate curves over time rather than a single snapshot, because a unit that starts tight can develop a slow leak after ten thousand pressure cycles.

The payoff shows up in field failure rates. A unit with a measured leak rate below 1×10⁻⁶ mbar·L/s at both 20°C and 60°C will rarely surprise you with an unexpected shutdown. Conversely, a unit that barely meets a loose specification at room temperature is a candidate for warranty claims, unplanned maintenance, and replacement costs. When you audit a supplier, ask to see their leak test data distribution, not just a certificate of conformance. The units that separate themselves come from lines where the leak rate histogram is tightly clustered around a low median, with a defined upper control limit that triggers rework. That's the difference between a unit that merely passed a test and one that was designed to stay tight for a decade.

Matching Switch Ratings to Real-World Fault Currents Instead of Brochure Numbers

Switch datasheets often quote a single fault-current rating that looks impressive on paper, yet the figure rarely reflects what happens at the installation. The actual available fault current depends on transformer impedance, conductor length, and upstream protection characteristics—none of which are static. Relying on brochure numbers without checking the calculated short-circuit current at the switch location leaves a gap between the tested condition and the field condition.

A more useful approach starts with an accurate fault study for the specific point in the system. Once the real prospective current is known, match it against the switch's withstand and interrupting ratings rather than the headline value. Pay attention to X/R ratio, asymmetrical current, and any derating for altitude or temperature. A switch that meets a generic 100 kA rating may still fail under a lower but more asymmetrical fault if the X/R exceeds the tested value.

Field verification adds another layer. Nameplate data should be checked against the actual installation, and protective device coordination reviewed so the switch never sees more than it can handle. When the real fault current is lower than the brochure figure, it often means you can select a more economical switch without sacrificing safety—but only if the engineering calculation supports it.

What Installers Often Get Wrong With SF6 Load Break Switches

One recurring mistake is treating the gas pressure gauge like a fuel gauge—installers read it at face value without correcting for ambient temperature. An SF6-filled tank can show healthy pressure in a warm warehouse but drop sharply once the switch is mounted outdoors in cold weather, leading to false low-pressure alarms or, worse, skipped leak checks. Always record the filling temperature and compare it against the manufacturer's pressure-temperature curve before signing off.

Another failure point shows up at the cable termination compartment. Many technicians overtighten the bushing connections, assuming more torque equals a better contact. That warps the conductor and compromises the sealing interface, creating slow gas leaks that don't appear until months later. Using a calibrated torque wrench and the exact sequence from the manual prevents most of these silent failures.

Finally, the operating mechanism gets overlooked during installation because the switch arrives pre-set from the factory. Installers forget to verify the stored-energy spring position and the mechanical interlocks after bolting the unit to the frame. A slight misalignment or a forgotten shipping pin can leave the switch unable to trip under fault conditions, which only becomes apparent during commissioning tests—or after a fault clears the hard way.

The Hidden Cost Factors Behind a Load Break Switch Quote

A load break switch quote rarely tells the whole story. The base unit price might look attractive until you account for the auxiliary contacts, shunt trip coils, and motor operators that many installations require. These add-ons are often buried in separate line items or omitted from preliminary pricing, only surfacing after the order is placed.

Then there is the cost of integration. Mounting brackets, busbar adapters, and cable lugs vary by switchgear layout and rarely appear in standard catalogs. If your panel builder has to modify enclosures or rework bus connections because the switch footprint differs from the original spec, those labor hours add up quickly. Freight and crating for larger three-phase switches can also come as a surprise, especially for expedited delivery.

Finally, consider lifecycle expenses that never make it onto the initial quote: spare fuse links, periodic contact resistance testing, and possible replacement of arc chutes in harsh environments. A switch with a lower purchase price may require more frequent maintenance or offer fewer local service options, wiping out the upfront savings within a few years.

FAQ

Conclusion

Chinese manufacturers have moved beyond simply copying older designs and now focus on the small engineering details that determine whether an SF6 load break switch survives decades in the field. Improved sealing systems, such as laser-welded tanks and double O-ring gland plates, have driven routine leak rates down to levels that go unnoticed until a thermal camera catches a cold spot. Instead of quoting a single impressive breaking capacity, reputable factories publish derating curves tied to actual X/R ratios and short-circuit durations, so a switch rated 20 kA at one second does not quietly become marginal when your feeder fault stays longer. This honesty matters more than a glossy datasheet because the gas inside is only as reliable as the seal holding it. Some suppliers also run pressurized helium sniffer tests on every unit, not just type samples, which catches pinhole leaks that a simple pressure-drop check misses. That kind of routine verification is what separates a switch that holds its SF6 charge for ten years from one that needs topping up after two monsoon seasons.

On the buying side, the gap between catalogue claims and installed reality often shows up in two places: overstated interrupting ratings and installation shortcuts. A load break switch may carry a 630 A continuous current label, but if the terminals overheat at 450 A because the copper was thinned or the bolt torque pattern ignored, that rating means little. Ask for a test report from an independent lab, not an internal one, and check whether the temperature rise was measured with the switch mounted in the same orientation you plan to use. Installers frequently forget to clean the busbar contact surfaces, use crimp lugs sized for cable not switch, or over-torque the gas valve stem, any of which can create a slow leak or hot spot. Beyond the hardware, compare quotes with a clear eye for extras: on-site commissioning, SF6 gas handling and disposal, spare fuses, extended warranty, and even the cost of training your crew to operate the switch under load. A cheaper unit that requires expensive gas refills every two years or fails a first-article inspection is not a bargain. Watching these details will save you from buying a switch that looks solid on paper but bleeds cost and gas in the real world.
